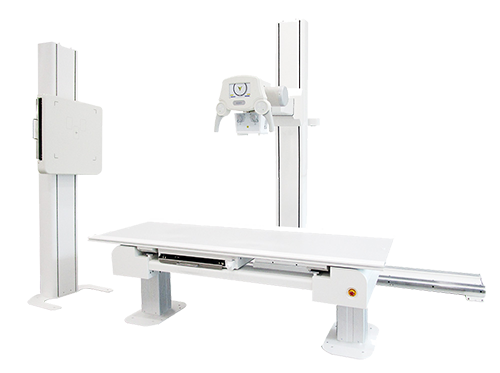

ECORAY HF-525 PLUS X-ray System
  • ECORAY HF-525 PLUS X-ray System
  • ECORAY HF-525 PLUS X-ray System
  • ECORAY HF-525 PLUS X-ray System
  • ECORAY HF-525 PLUS X-ray System
  • ECORAY HF-525 PLUS X-ray System
  • ECORAY HF-525 PLUS X-ray System
  • ECORAY HF-525 PLUS X-ray System
  • ECORAY HF-525 PLUS X-ray System
ECORAY HF-525 PLUS X-ray System

ECORAY HF-525 PLUS X-ray System

200,000.00 SR

MAIN FEATURES

  • 1. Different type of high performance generator based on its own high frequency technology
  • 2. The 4 ways table is smooth, and effortless to float, and consisted with heavy-duty structure

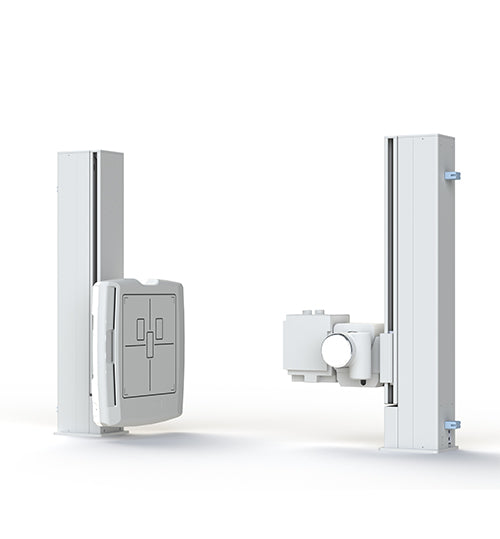

  • 3. With Fully counter-balanced, the floor mounted tube stand can travel along with the rail, and rotate 360 degree for any axial projections
  • 4. Wall bucky stand with electromagnetic lock for easy positioning
  • 5. User-friendly flat surface control panel
  • 6. Anatomical programming (APR) by morphology, view and body part (Reprogrammable APR)
  • 7. Modular design that saving space to fit into virtually any clinical environment



HF-525 PLUS (DR)

The system unit offers fine imaging performance. HF-525 PLUS (DR) is a well-established digital X-ray imaging solution with optimized design. The ergonomic & durable mechanics offers smooth, quick and easy to operate for performing reliable examinations in your Rad room.

Catalogue Download

FIT FOR PURPOSE, EASY TO USE

  • 1. HF-525 PLUS (DR) offers smart features that speed up your daily routine
  • 2. Auto tracking system synchronizes the movements of tube and detector with maintaining constant SID (Optional)
  • 3. The tracking system feature can be used for table and upright bucky stand applications(Optional)
  • 4. Additionally, the auto-collimator provides the feature of maintaining the right field size of light with SID differences


DOSE EFFICIENCY

  • 1. X-ray quantum detecting efficiency is a measurement that indicates how many percentage of X-ray the detector is able to absorb once it get exposed.
  • 2. Systems with higher quantum efficiency can produce higher quality images, with low patient dose.

VERSATILE FLAT PANEL DETECTOR CONFIGURATION

With the new technologies of flat panel detectors, the user can select HF-525 PLUS (DR) for high quality of image, better work flow, and so on.

Can be configured as:

  • - Two flat panel detectors of 17”x17” size
  • - One flat panel detector of 17”x17” size is installed in the wall bucky stand and one portable wireless flat panel detector of 14”x17” size is installed in the table with rotating bucky device ( The portable detector can be extracted, and used for table top work)
  • - One portable wireless flat panel detector of 14”x17” size can be used in table and wall bucky stand

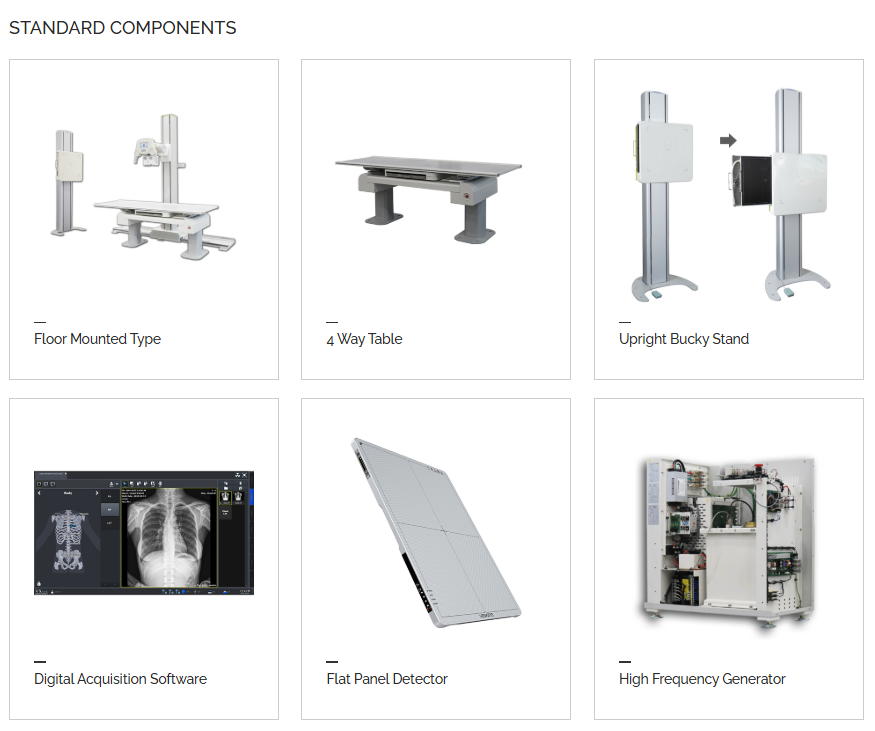

STANDARD COMPONENTS


Floor Mounted Type
4 Way Table

Upright Bucky Stand

Digital Acquisition Software

Flat Panel Detector

High Frequency Generator
